Secret Management

Codesphere provides a Secret Management system integrated with OpenBao, an open-source security vault. This ensures that sensitive data, such as API keys, database credentials, and certificates, are stored with industry-standard encryption and injected into your services only when needed.

Overview​

Unlike standard environment variables, secrets are stored in a vault shipped with a Codesphere instance. This provides several advantages:

• Encryption at Rest: All values are encrypted before being persisted.
• Granular Access: Only services explicitly referencing a secret can access its value.
• Automatic Cleanup: Secrets are bound to the lifecycle of the workspace.

Referencing Secrets​

Secrets are managed within the Landscape Config Editor. To define a secret, you must use a specific templating syntax regardless of whether you are using the UI or the YAML configuration.

Template Syntax: ${{ vault.secretKeyOfBao }}

schemaVersion: v0.2
prepare:
  steps: []
test:
  steps: []
run:
  secret-demo:
    steps:
      - command: echo $SECRET_KEY
    plan: 8
    replicas: 1
    network:
      ports:
        - port: 3000
          isPublic: false
      paths: []
    env:
      SECRET_KEY: ${{ vault.secretFoo }}
      PLAIN_ENV: foo

Advanced Environment Templates​

Beyond vault secrets, Codesphere supports dynamic templates to reference system-level IDs or existing workspace environment variables. These are particularly useful for making your configuration portable or remapping variables.

Use Case: Variable Remapping​

The ${{ workspace.env[...] }} template allows you to map global variables to specific service requirements.

For example, if a backend service expects an environment variable named PG_USER, but your database credentials are saved globally as BACKEND_PG_USER to avoid naming collisions with other databases, you can map them like this:

env:
  PG_USER: ${{ workspace.env['BACKEND_PG_USER'] }}

Syncing and Persistence​

After defining the secret references, you must sync the Landscape Profile within the Execution Manager.

The Sync Process​

When the selected ci.yml contains new secret references during a landscape synchronization, the user is responsible for providing the actual secret values. The process follows these steps:

1. User Prompt: A modal appears prompting you to provide the secret entries defined in your configuration.
2. Input: You must enter the secret's real value at least once to initialize the entry in the vault.
3. Persistence: Once submitted, these values are persisted in the OpenBao instance.
4. Injection: The sync proceeds, and the landscape accesses the vault keys to inject them into the respective services.

The secret input modal triggered during the landscape sync process.

Updating Secrets​

While a dedicated user interface (UI) for the secrets vault is currently unavailable, secrets can be managed during landscape synchronization. When syncing a landscape, you can choose to deploy using existing secrets or update them before proceeding. The process follows these steps:

1. User Prompt: A modal appears prompting you to select how to deploy the landscape: with existing secrets or change secrets before deploying.
2. Input: Select change secrets before deploying. Provide the new real secret value. This will overwrite the value in the vault after clicking the confirm button. Note: You can undo any change to the secret or view the real value while in the editing process.
3. Persistence: Once submitted, these values are persisted in the OpenBao instance.
4. Injection: The sync proceeds, and the landscape accesses the vault keys to inject them into the respective services.

The secret input modal triggered during the landscape sync process.

Shared Vaults​

By default, every workspace gets its own isolated vault partition, and the secret values it references must be initialized during the first landscape sync (see The Sync Process). A shared vault removes that manual step for secrets that are common across a team.

A shared vault is a dedicated partition inside the cluster vault that lives at the team level rather than the workspace level. Once created, it can be shared among any number of workspaces within the same team. The main advantages are:

• Zero-setup access: Workspaces assigned to a shared vault can reference its secrets immediately — without anyone entering values during workspace creation or landscape sync.
• Single source of truth: Common credentials (for example, shared database connection details) are stored once and reused everywhere, instead of being duplicated into each workspace.
• Centralized rotation: Updating a value in the shared vault propagates to every workspace that uses it on the next deployment.

How a Workspace Resolves Shared Secrets​

The templating syntax for referencing a secret does not change — you still use ${{ vault.secretKey }} in your service configuration (see Referencing Secrets). What changes is which vault the reference resolves against:

• If a workspace is assigned a shared vault, all ${{ vault.* }} references in its landscape resolve against that shared partition.
• If no shared vault is assigned, references resolve against the workspace's own partition (the default behavior).

This means a workspace pointed at a shared vault can deploy a landscape that consumes shared secrets without any per-workspace initialization beforehand.

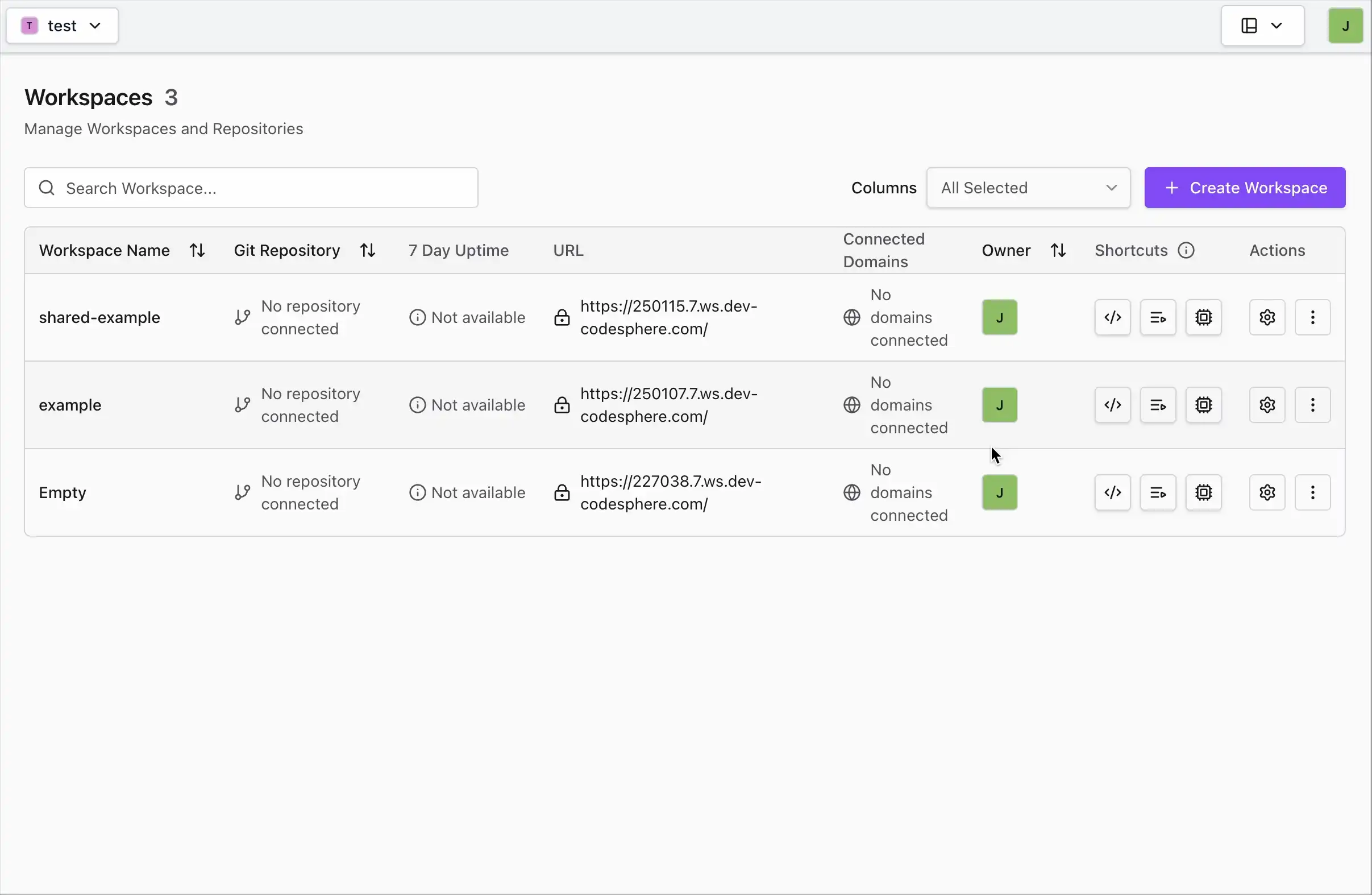

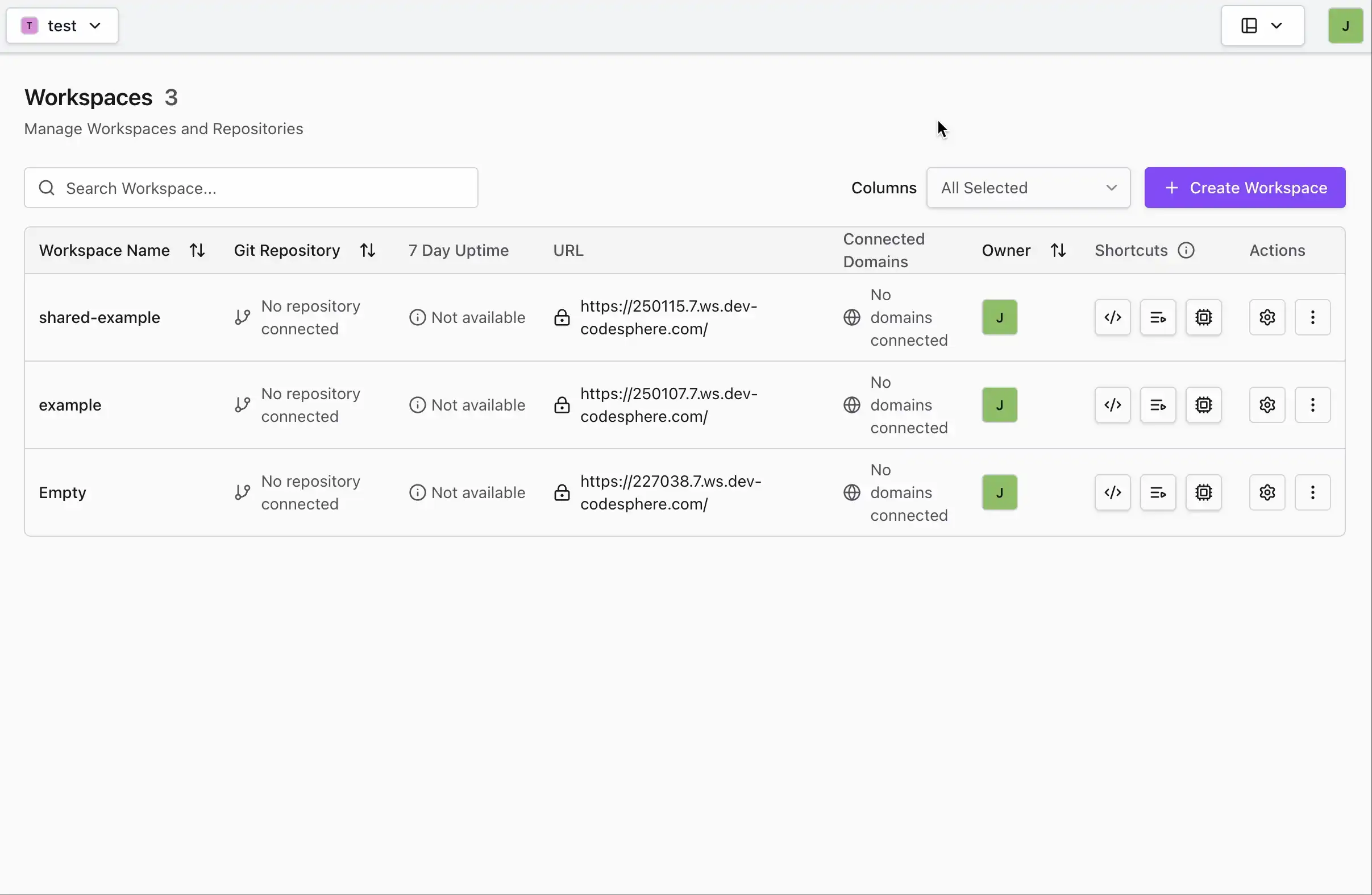

Assigning a Shared Vault to a Workspace​

Shared vaults are selected per workspace through the Secrets Vault dropdown. The dropdown lists every shared vault available in the team plus the default Workspace (default) option, which keeps the workspace on its own isolated partition.

Managing Secrets via the Public API​

The Codesphere Public API exposes a full set of vault endpoints, allowing you to manage and auto-generate workspace secrets programmatically — for example, in a CI/CD pipeline or an internal developer platform. Authentication and general API usage are covered in the Public API documentation.

All vault endpoints follow this base path:

/vault/teams/{teamId}/workspaces/{workspaceId}

Store secrets​

POST /vault/teams/{teamId}/workspaces/{workspaceId}

Writes one or more secret key-value pairs to the vault for a given workspace. Returns a map of each key to its revision identifier, which combines a version number and a timestamp.

Request body:

{
  "DATABASE_PASSWORD": "supersecretpassword",
  "API_KEY": "123456789"
}

Response:

{
  "DATABASE_PASSWORD": "1__2026-03-05T10:14:48.490756937Z",
  "API_KEY": "1__2026-03-05T10:14:48.490756937Z"
}

List secret keys​

GET /vault/teams/{teamId}/workspaces/{workspaceId}/keys

Returns the list of secret keys stored for a workspace. Values are never exposed through this endpoint.

Response:

["DATABASE_PASSWORD", "API_KEY"]

Delete secrets​

DELETE /vault/teams/{teamId}/workspaces/{workspaceId}

Permanently removes the specified secrets from the vault.

Request body:

["DATABASE_PASSWORD", "API_KEY"]

Auto-generate secrets​

POST /vault/teams/{teamId}/workspaces/{workspaceId}/generate

Generates cryptographically random secret values and stores them directly in the vault — no plaintext value ever needs to leave your pipeline. The shape of each generated value is controlled by a password policy.

Password policy fields:​

Request body:

{
  "DATABASE_PASSWORD": {
    "length": 16,
    "rules": [
      {
        "charset": "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789",
        "minChars": 16
      }
    ]
  },
  "API_KEY": {
    "length": 32,
    "rules": [
      {
        "charset": "0123456789abcdef",
        "minChars": 32
      }
    ]
  }
}

Response — the generated values and their revision identifiers:

{
  "DATABASE_PASSWORD": {
    "value": "aB3kR7mX...",
    "revision": "1__2026-03-05T10:14:48.490756937Z"
  },
  "API_KEY": {
    "value": "1a2b3c4d...",
    "revision": "1__2026-03-05T10:14:48.490756937Z"
  }
}

Shared vault endpoints​

The Public API also exposes endpoints for managing shared vaults — team-level vaults that can be reused across workspaces. These let you provision a shared vault and its secrets programmatically, for example when bootstrapping a new team environment.

Shared vault endpoints are scoped to the team rather than a single workspace and follow this base path:

/vault/teams/{teamId}/shared

The secret value semantics — revision identifiers, write/list/delete behavior — are identical to the workspace endpoints described above. Listing requires team read access; creating, deleting, and modifying require team write access.

List shared vaults​

GET /vault/teams/{teamId}/shared

Returns the names of all shared vaults belonging to the team.

Response:

["production-secrets", "staging-secrets"]

Create a shared vault​

POST /vault/teams/{teamId}/shared

Creates a new, empty shared vault for the team. Secrets are added separately with the store endpoint below.

Request body:

{
  "name": "production-secrets"
}

Delete a shared vault​

DELETE /vault/teams/{teamId}/shared/{vaultName}

Permanently deletes a shared vault and all secrets stored in it. Any workspace still assigned to this vault will fail to resolve its secrets on the next sync.

Store secrets in a shared vault​

POST /vault/teams/{teamId}/shared/{vaultName}/secrets

Writes one or more secret key-value pairs to the named shared vault. Returns a map of each key to its revision identifier (a version number combined with a timestamp).

Request body:

{
  "DATABASE_PASSWORD": "supersecretpassword",
  "API_KEY": "123456789"
}

Response:

{
  "DATABASE_PASSWORD": "1__2026-03-05T10:14:48.490756937Z",
  "API_KEY": "1__2026-03-05T10:14:48.490756937Z"
}

List secret keys in a shared vault​

GET /vault/teams/{teamId}/shared/{vaultName}/keys

Returns the list of secret keys stored in the named shared vault. Values are never exposed through this endpoint.

Response:

["DATABASE_PASSWORD", "API_KEY"]

Delete secrets from a shared vault​

DELETE /vault/teams/{teamId}/shared/{vaultName}/secrets

Removes one or more named secrets from the shared vault. Deleting every key does not remove the vault itself — use the Delete a shared vault endpoint for that.

Request body:

["DATABASE_PASSWORD", "API_KEY"]

Security and Access Control​

Codesphere enforces strict isolation for secret access:

• Reference-Based Access: A service can only retrieve a secret if it is explicitly defined in its configuration.
• Landscape Isolation: Secrets are managed at the landscape level, ensuring that different deployment environments remain separated.

Lifecycle and Cleanup​

To maintain a clean security posture, Codesphere automatically manages the lifecycle of your secrets. When a Workspace is deleted:

• All associated secret entries in the vault related to that workspace and its services are identified.
• The system performs a permanent cleanup of all related keys.
• No sensitive data remains available after the workspace is removed.

Shared vaults follow a different lifecycle: because they are owned by the team and shared across workspaces, they are not removed when an individual workspace is deleted. A shared vault and its secrets persist until it is explicitly deleted — either through the Public API or by an installation admin.
