Managed Containers

Managed Containers allow you to bring your own OCI images to Codesphere while leveraging the platform's orchestration, networking, and monitoring capabilities. This runtime type uses the same underlying infrastructure as Codesphere Reactives, but allows you to define custom images and pre-bake dependencies via OCI images.

Overview​

Managed Containers bridge the gap between the simplicity of Codesphere Reactives and the flexibility of custom container images:

Feature	Codesphere Reactives	Managed Containers
Base Image	Shared Codesphere Ubuntu (customizable for private cloud)	Your own OCI image
Startup Time	Milliseconds	Seconds (depends on image size)
Dependencies	Local (npm packages, Python packages, etc.) or Nix	Pre-baked in OCI image
OS Distribution	Ubuntu or set by organization admin	Any (Alpine, Debian, etc.)
Image Registry	N/A	Docker Hub, ECR, private registries
Orchestration	Full platform features	Full platform features
Filesystem Access	Customizable shared network filesystem	Customizable shared network filesystem
Off-when-unused	Yes	Yes
Scaling & Load Balancing	Yes	Yes
Platform Integration	Built-in	At runtime

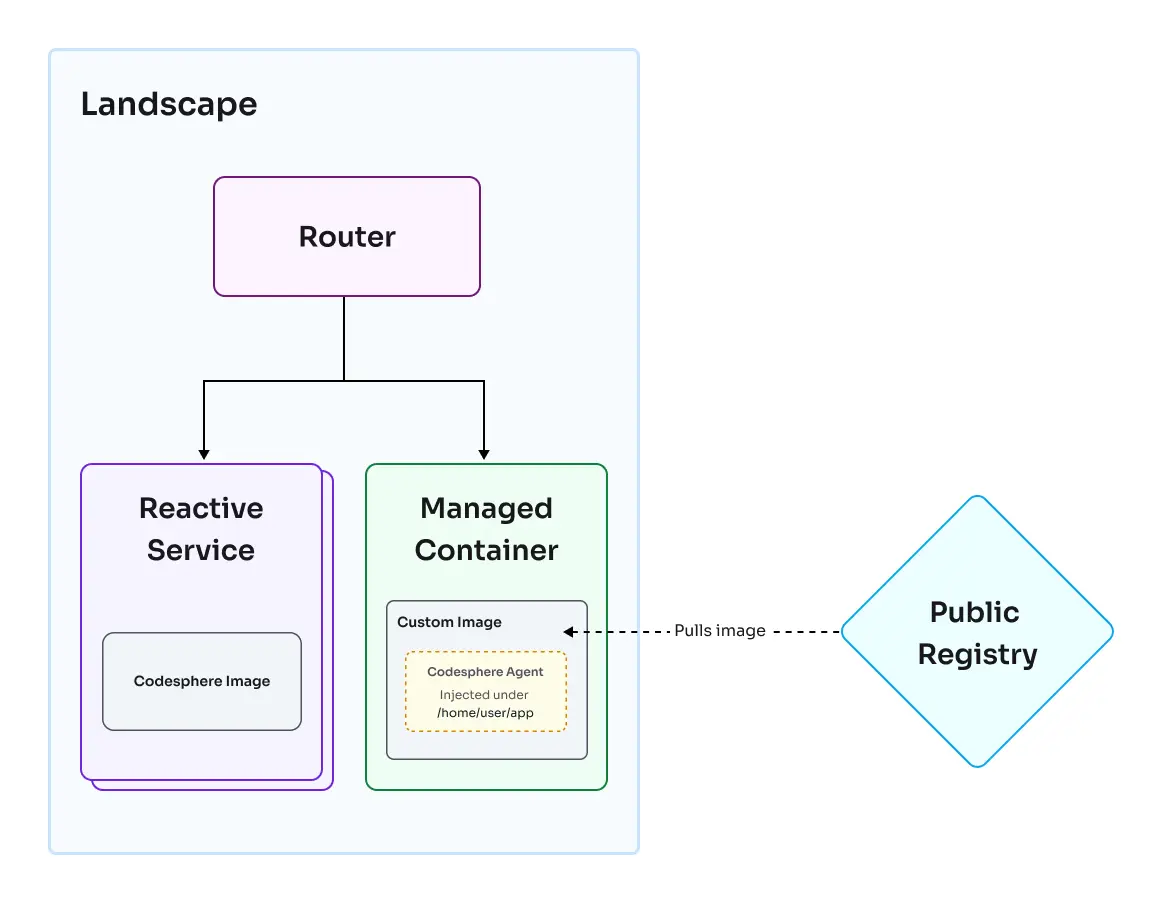

Architecture​

Managed Containers use the same orchestration platform as Reactives, with the key difference being the container image source:

Key Components​

1. Custom Container Image​

• Define your own base image via Dockerfile
• Pull from Docker Hub, ECR, GCR, or private registries
• Pre-bake all system dependencies and packages
• Complete control over OS distribution and version

2. Platform Orchestration​

• Same Kubernetes-based orchestration as Reactives
• Health monitoring, load balancing, and auto-scaling
• Off-when-unused capabilities for resource efficiency
• Codesphere agent integrated at runtime for platform features

3. Shared Network Filesystem​

• Identical filesystem access as Reactives
• Mount any file or directory to any destination in your container
• Default mount at /home/user/app for persistent storage
• Same best practices apply (write to app directory, avoid concurrent writes)

4. Image Pull & Startup​

• Container images pulled from registry on first start
• Subsequent starts may use cached images (depends on cluster state)
• Startup time typically in seconds vs milliseconds for Reactives
• Trade-off for complete image customization

Compatibility considerations​

When to Use Managed Containers​

Managed Containers are ideal for:

• Existing OCI Images/Dockerfiles - Reuse existing container definitions
• Specific base OS requirements - Alpine, Debian, custom distributions
• Complex dependencies - System-level packages best managed via Dockerfile
• Open source projects - Already containerized applications
• Registry-based workflows - CI/CD that pushes images to registries

Consider Codesphere Reactives instead when:

• You don't need a specific base image
• Faster startup time is critical
• You prefer runtime dependency installation via Nix
• You're starting a new greenfield project

Commonalities with Codesphere Reactives​

Both runtime types share the same underlying platform capabilities:

Capability	Both Runtimes
Filesystem Access	Shared network filesystem at /home/user/app
Off-when-unused	Automatic resource deallocation during idle periods
Scaling	Horizontal (replicas) and vertical (plans)
Load Balancing	Automatic via Landscape Router
Health Monitoring	Configurable health checks and auto-restart
Private Networking	Secure internal service communication
Secret Management	Vault integration for sensitive data
Monitoring	Logs, metrics, and request tracing
Platform Integration	Codesphere agent for platform features

Using a private registry​

A Managed Container boots from a custom base image (baseImage). When that image lives in a private registry, the landscape needs credentials to pull it. Codesphere supports two ways to provide them: team-level container registries (recommended) and workspace secrets (deprecated, still supported).

Team-level container registries​

Team admins can configure registry credentials once, at the team level, instead of managing secrets per workspace. Codesphere matches a Managed Container's baseImage against the configured registries and uses the credentials automatically at deploy time.

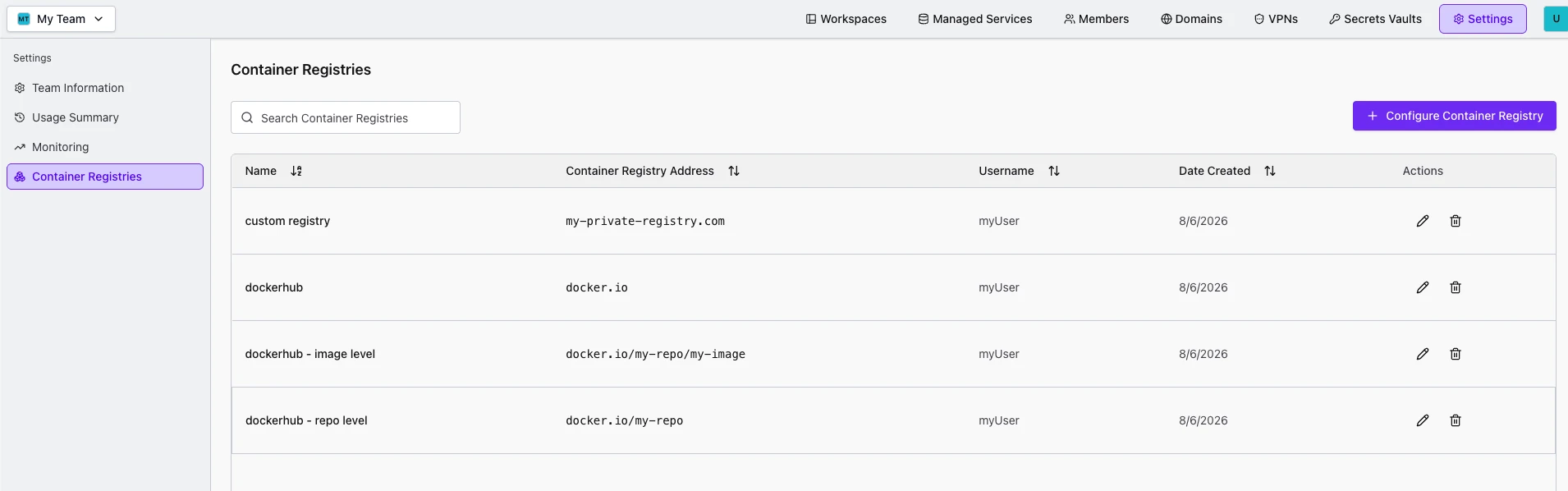

1. Open your Team, then go to Settings > Container Registries.
2. Click Configure Container Registry.
3. Give the registry a Name, and set the Container Registry Address, Username, and Password/access token.

The registry address can be scoped as broadly or as narrowly as you need, the most specific matching entry for a given baseImage is used.

Workspace secrets (deprecated)​

You provide credentials as two workspace secrets. Codesphere reads them at deploy time and uses them to pull the image.

Key	Value
REGISTRY_USERNAME	Registry username
REGISTRY_PASSWORD	Registry password or access token

The key names are exact and case sensitive. Both must be present.

Store them in the workspace vault the same way as any other secret. See Secret Management for how to persist workspace secrets.

On the next redeploy, the image is pulled using these credentials if they are needed.

Configuration & Lifecycle​

Managed Containers are configured through the ci.yml file in your repository. For comprehensive guides on configuring and managing Managed Containers, see:

• Configuring a Landscape - Complete guide to landscape configuration
• Configuring CI Pipeline - Detailed pipeline setup including prepare and run stages
• Landscape Lifecycle - Understanding deployment, scaling, and lifecycle management
• Environment Variables - Managing environment configuration
• Secret Management - Secure handling of sensitive data
• CI Profiles - Managing different configurations for dev, staging, and production
